PoE Splitter and PoE module

< >

Active PoE Splitter

Support IEEE802.3AT/AT protocol and 48V non-standard PoE powered devices

Support both 1236 and 4578 power supply methods

With short circuit and overload protection

Output voltage 12V, long time with load 24W

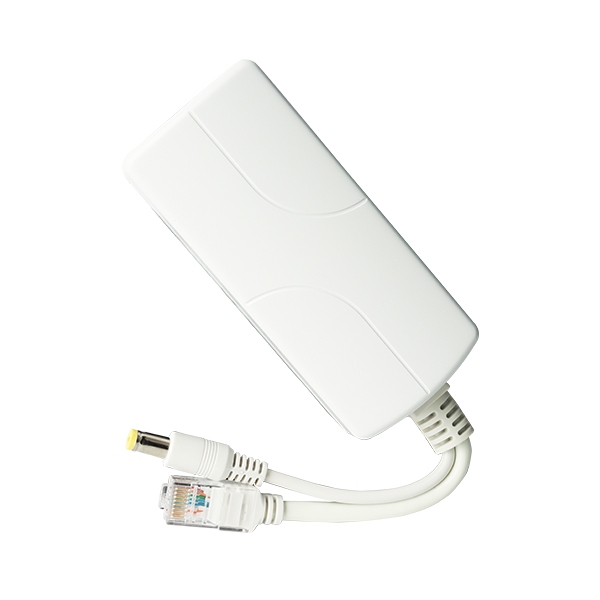

Hi-P05-D indoor waterproof PoE splitter is mainly used for security surveillance cameras, wireless APs, IP phones and other devices, which can provide network and power supply needs for non-PoE devices. The product supports standard PoE protocol and non-standard 48V device power supply, with a maximum output power of 12W and a maximum output bandwidth of 1000M.

Product	PoE Splitter
Model	Hi-P23
Port	PoE Port：1*10/1000M adaptive RJ45 port
LED Indicator	PoE Power
Network Medium	10/100BASE-TX：category 5 or above unshielded twisted pair
Basic Function	Compatible with PD devices with IEEE802.3af/at, plug and play
PoE Protocol	IEEE802.3af
PoE Connection	Both 1/2-、3/6+ and 4/5+、7/8-
Transmission Distance	≤100M
Input Voltage	DC:44-57V
Output Voltage	DC:12V /±0.3V
Output Current	2.0A
Output Power	24W
Ripple & Noise	≤240mV
Environment	Operating Temperature：-10°- 55°C
Size	200mm×43mm×29mm(L×W×H)
